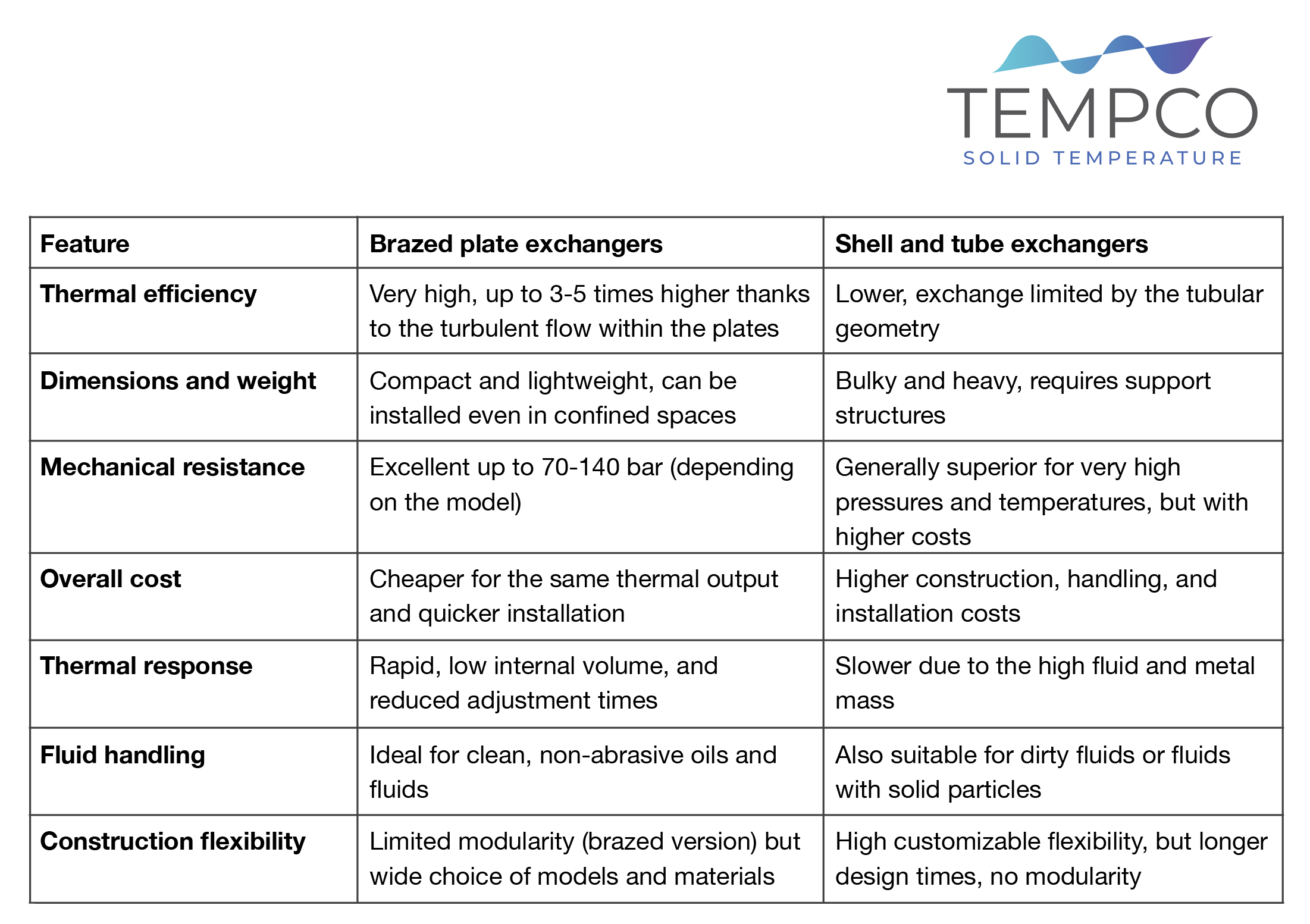

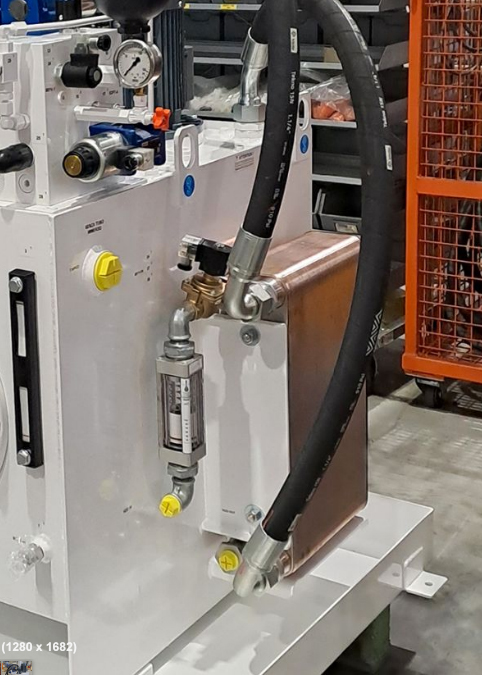

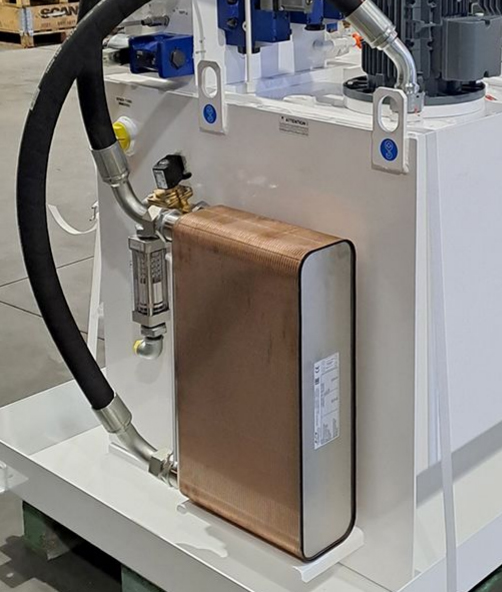

Let’s go back to a classic topic of thermoregulation in hydraulic applications: plate heat exchangers vs. shell-and-tube heat exchangers. The images below show some examples of hydraulic power plants equipped with Tempco brazed plate heat exchangers, employed for hydraulic oil cooling.
Brazed plate heat exchangers are the ideal solution for these plants thanks to their compactness, high thermal efficiency, and total maintenance-free operation. Compared to traditional shell-and-tube heat exchangers, they offer a series of concrete advantages that make them particularly suitable for modular, high-power density installations in small spaces.
The choice of Tempco
In Tempco hydraulic power plants, brazed plate heat exchangers are custom-sized based on the customer’s operating conditions:
- flow rates
- viscosity
- operating temperature
- heat dissipation duty
The use of copper or nickel-brazed stainless steel heat exchangers ensures high corrosion resistance and long operating life, with consistent thermal performance over time. Their compactness and reliability make them the perfect choice for high-performance systems, where every detail counts to ensure operational continuity and energy savings.
In short, brazed plate heat exchangers maximize thermal transfer efficiency and reduce overall dimensions, simplifying maintenance and improving the reliability of hydraulic power plants.
